TouchVink
Firmware for Touch 2 (Simple Touch) (Synthux Academy)
Self-regulating feedback instrument for the Touch 2 after Jaap Vink's tape, ring-mod and reverb patches, played from the pads with a web manual that mirrors the panel.
- Distribution
- Prebuilt image you flash yourself
- License notes
- The firmware links DaisySP-LGPL (ReverbSc), which is LGPL-licensed.
- Source
- github.com https://github.com/jonwaterschoot/TouchVink
- Homepage
- jonwaterschoot.github.io https://jonwaterschoot.github.io/TouchVink/
- feedback
- drone
- ring-modulation
- reverb
- experimental
- midi
- open-source
- touch-2
Description

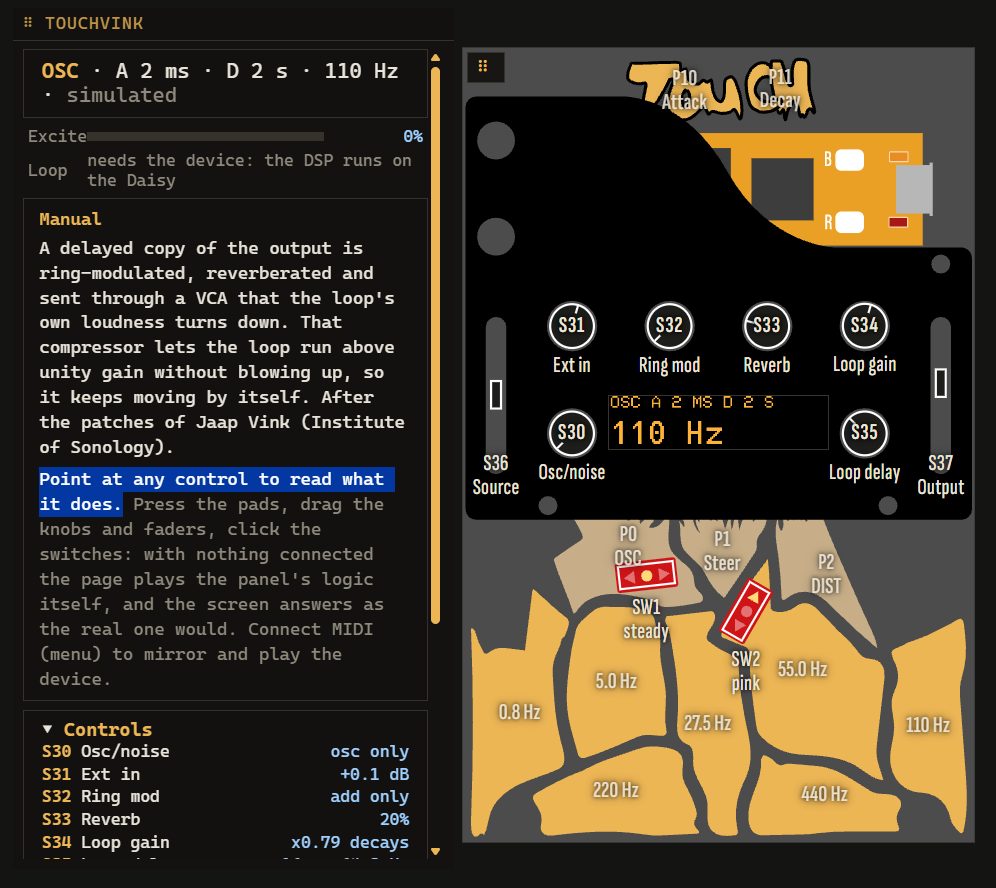

A delayed copy of the output is ring-modulated, reverberated and passed through a VCA that the loop's own loudness turns down, which lets the loop run above unity gain and keep moving. Pads excite the loop in oscillator or distortion mode, knobs set the oscillator/noise balance, external input, ring modulation, reverb, loop gain and delay time (2 ms to 1.9 s), and USB MIDI works in both directions. An interactive manual draws the panel in the browser. The README states that version 0.2 compiles and its DSP is tested on a desktop, but it had not yet been tested on hardware.
Install notes
Download the .bin from the releases page and flash it at flash.daisy.audio with the Seed in DFU mode (hold BOOT, tap RESET), or build it from source.
Version history
| Version | Date |
|---|---|
| v0.2.0 | 2026-09-29 |
