TripDeck
Psychedelic synth where every page is a full-screen animated picture driven by its four knobs: sitar, pad, organ and FM bell voices, spiral echo, shimmer reverb, vowel filter, scale lock, arpeggiator and sequencer.
Brick risk. Flashing this carries a known, documented risk of damaging the device.
- Distribution
- Build from source yourself
- Source
- github.com https://github.com/anonymousacademe/FM-1-TripDeck
- synth-engine
- ui
- fx
- reverb
- sequencer
- scales
- usb-audio
- midi
Description

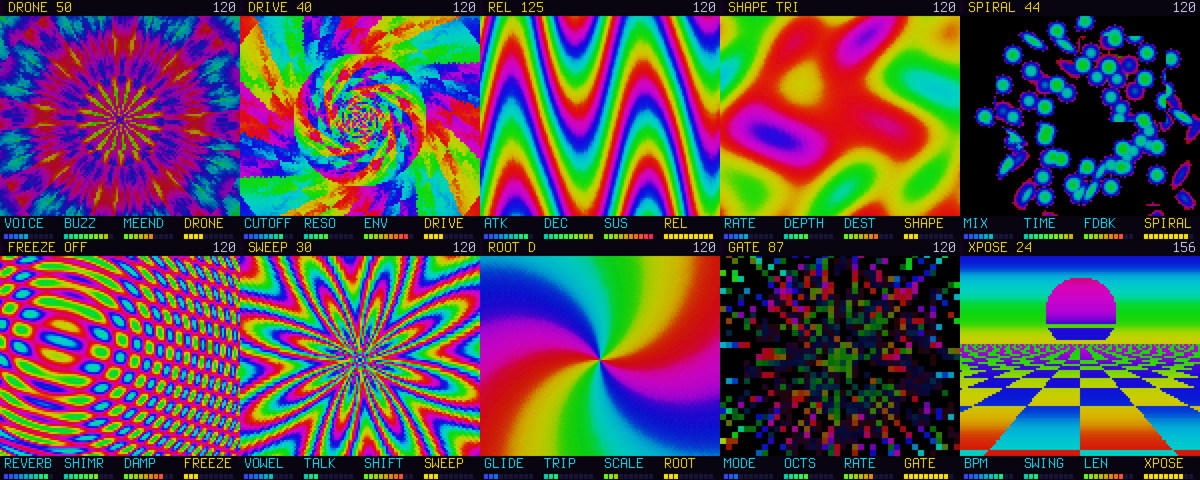

Ten pages, each drawn as a different animation, with the knobs changing the sound and the picture together. A TRIP mode lets the colouring parameters drift on their own, and HOME double-tap mutates the patch. It has eight patches, a 32-step sequencer, USB MIDI and USB audio. Built on CyberDeck and Dinghy.
Install notes
Build build/tripdeck.fwsc with ./build.sh (JieLi toolchain and three AC79 SDK files needed) and install it with tools/fm1_install.py. Hold OCT- while switching on for USB rescue. The README points to the FM-1 Firmware Hub for returning to other firmware or to the official one. The first start replaces settings saved by CyberDeck or an earlier TripDeck.
Version history
| Version | Date | Notes |
|---|---|---|
| 0.2 | 2026-10-14 | Git tag; no GitHub release page. |
