MIN-1

Firmware for FM-1 (M-VAVE)

Self-playing minimalist ensemble in the manner of 1960s to 1980s process music, with four models and twenty pieces that you can take over by playing chords, rolling new ideas and recording songs.

by Reytian

ActiveSource: openGPL-3.0-only

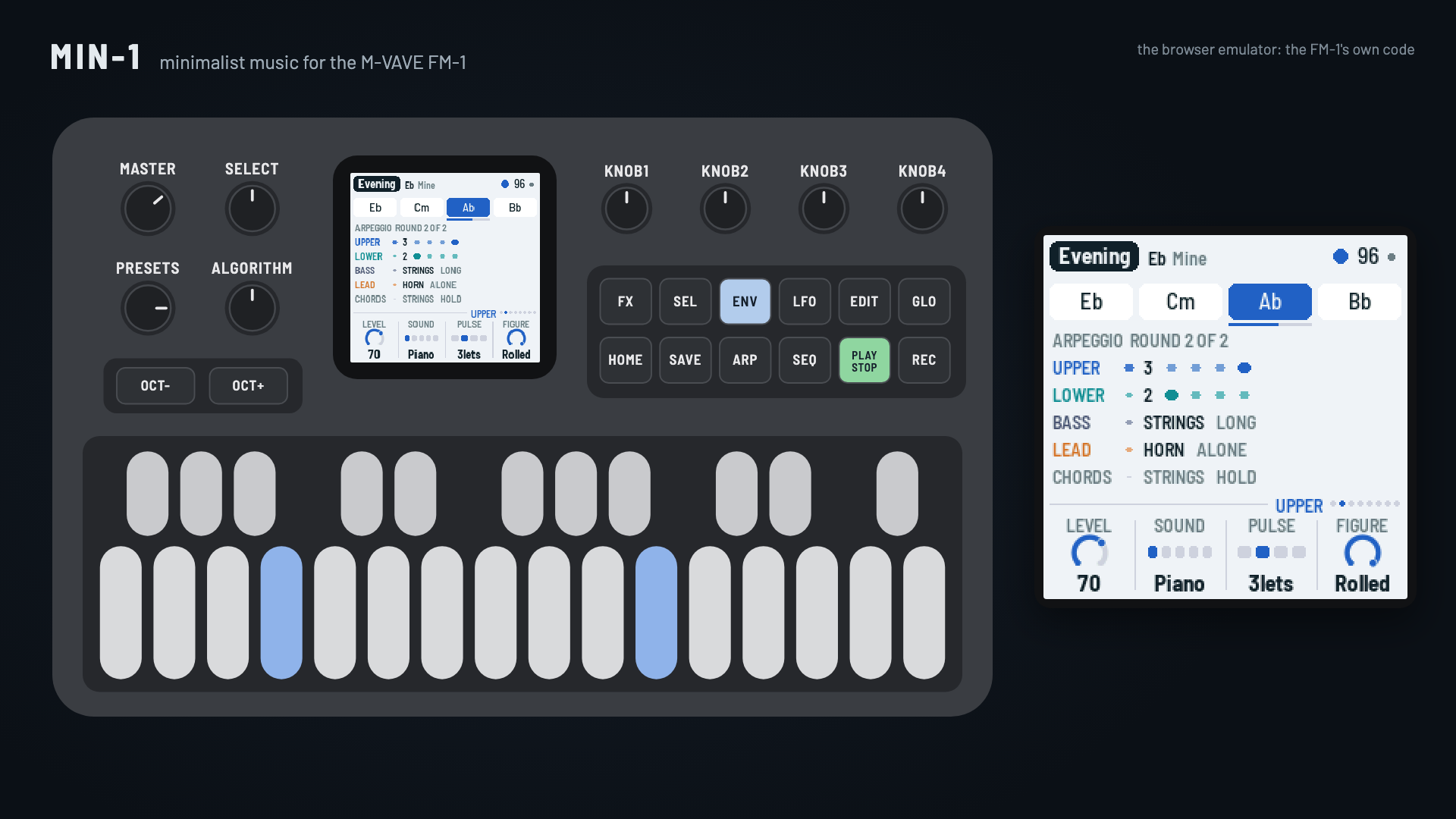

MIN-1 in the browser emulator: the FM-1 panel with its screen showing the Evening piece, four chords and upper, lower, bass, lead and chords parts, beside an enlarged copy of the screen
Reytian, via github.com

Brick risk. Flashing this carries a known, documented risk of damaging the device.

Distribution
Browser installer (WebMIDI / WebUSB)
License notes
Inherited from Felucca (LICENSING.md); fonts are SIL OFL 1.1.
Source
github.com https://github.com/Reytian/fm1-min1
Homepage
reytian.github.io https://reytian.github.io/fm1-min1/

Description

The four models are arpeggio (chord figures with additive process), phase (one figure on two parts that drift apart and realign), patterns (a chain of slightly changed patterns played at different paces) and bells (a stepwise melody answered by bells). In the default EASY key mode each white key is a chord that fits the current key, and a chord cycle can be learned from the chords you play. Parts can be brought in and out by hand, and eight songs can be recorded and played back exactly. It starts from the AMB-1 app layer and simulator, whose platform comes from Felucca by way of X0X and FoMni. A browser emulator and a browser installer are published on the project site.

Install notes

Installer page in Chrome or Edge with the FM-1 connected, or tools/fm1_install.py with the .fwsc from the releases page. An FM-1 that fails to start twice comes up in a safe mode with USB on. The installer page offers a return to M-VAVE's own firmware, which you download from M-VAVE yourself.

Version history

MIN-1 version history
VersionDateNotes
0.2.12026-10-16A learned chord cycle keeps the key's major or minor mode.
0.22026-10-16First public release.
