altstrument

Melodee

Firmware for FM-1 (M-VAVE)

Felucca fork with a Sequential Prophet-5 engine (all 200 factory programs, SysEx), a Casio CZ-1 phase-distortion engine (64 factory tones), FM6 with DX7 SysEx banks, 70 microtonal tunings and a unified note editor.

by keremimo

ActiveSource: openGPL-3.0-only

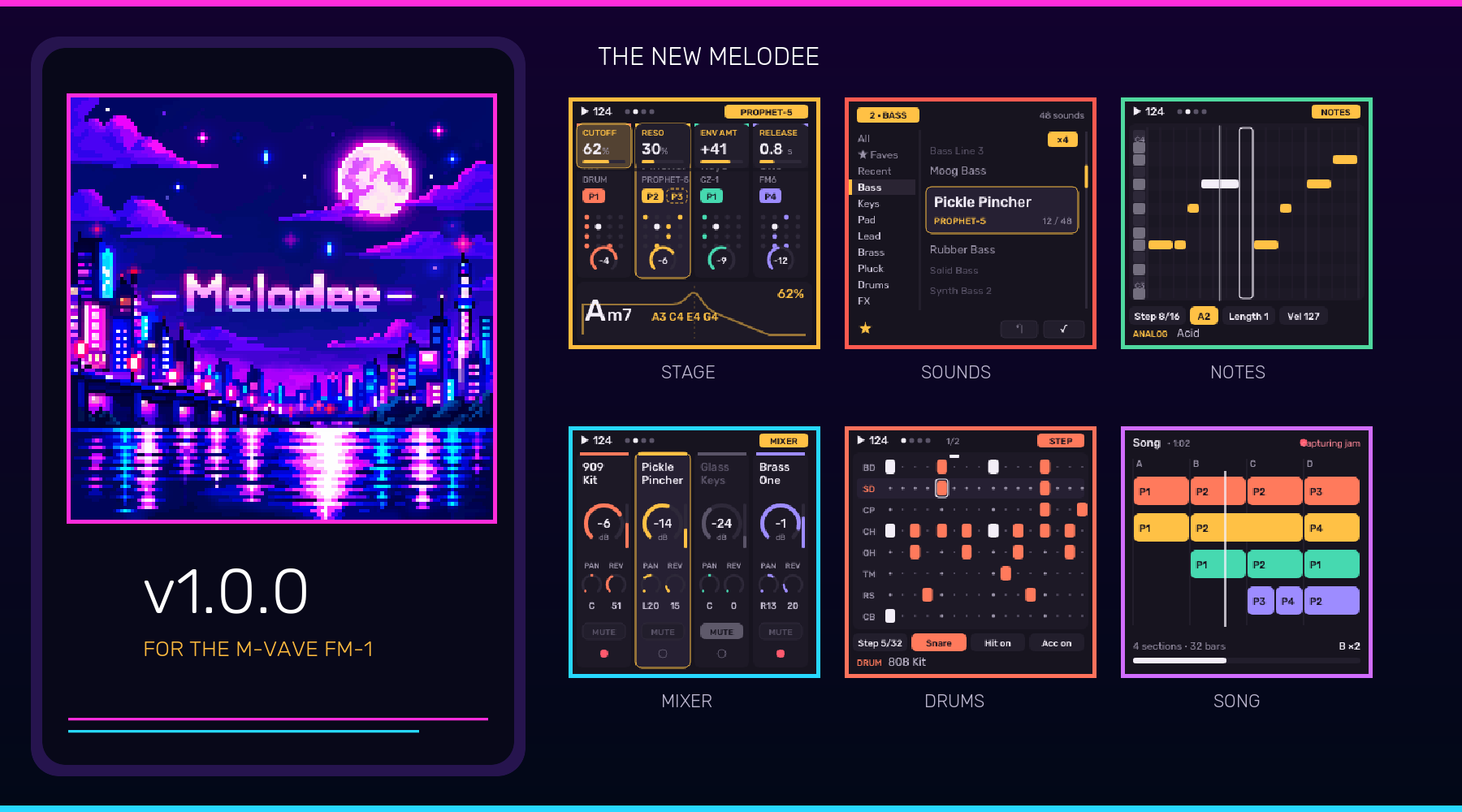

Melodee 1.0.0 logo and six firmware screens
keremimo, via github.com

Brick risk. Flashing this carries a known, documented risk of damaging the device.

Distribution
Browser installer (WebMIDI / WebUSB)
License notes
Fonts, icons, ported DSP and SDK files keep their own licences (LICENSES/).
Source
github.com https://github.com/keremimo/melodee
Homepage
keremimo.github.io https://keremimo.github.io/melodee/

Description

Four tracks, 32 pattern banks and 1,024 recorded notes, plus a web editor. Its four audio outputs appear as discrete USB audio streams, which take-taker (an Android recorder) can capture as separate tracks. 1.0.0 followed 0.13.1; the 1.0.0 release is noted to have crashed on some units (fixed in later 1.x).

Install notes

Browser WebMIDI installer that saves a backup first and can return the FM-1 to V15. Releases also ship recovery archives (the 2026-10-13 correction makes them accept the unmodified V15 file).

Version history

Melodee version history
VersionDateNotes
1.3.12026-10-12
1.3.02026-10-12
1.2.12026-10-11
0.13.12026-10-08Last 0.x release before 1.0.0.

Back to FM-1
