S-MU2000
Unofficial VST3, CLAP and Audio Unit plug-in that emulates the MU2000's CPU and tone-generator chips and runs the unmodified original firmware from ROMs you extract yourself.
by tarboh
- Distribution
- Prebuilt image you flash yourself
- Requires stock
- ROM images dumped from your own MU2000
- License notes
- Parts derive from MAME device code that is individually BSD-3-Clause; copyright notices are collected in NOTICE.txt.
- Source
- github.com https://github.com/tarboh/S-MU2000
- Homepage
- tarboh.github.io https://tarboh.github.io/S-MU2000/
- emulator
- synth-engine
- research
Description

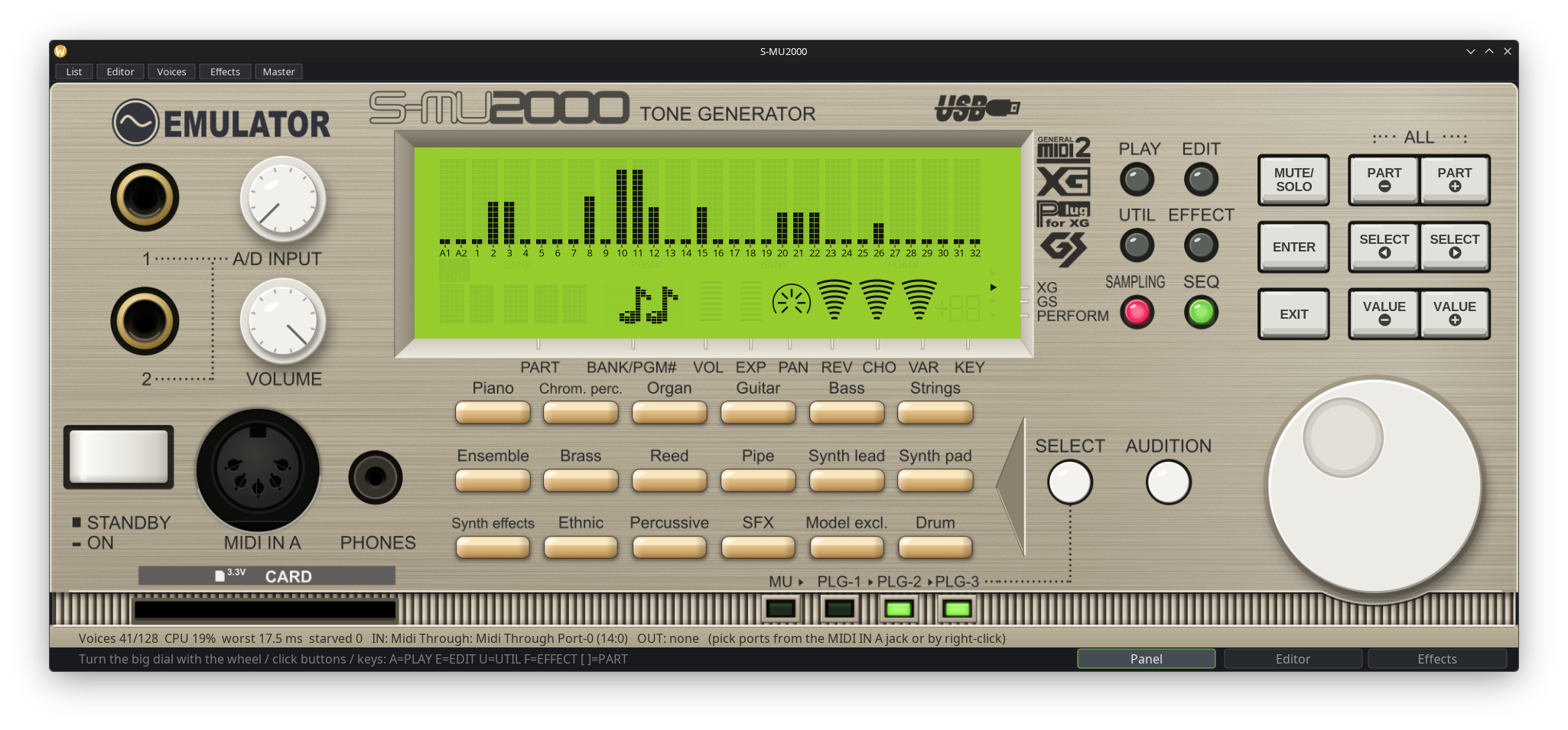

Emulates the SH7043 processor and two SWP30 chips, using chip code taken from MAME, so voices and behaviour come from the real firmware. It runs as a plug-in on Windows, Linux and macOS, as a standalone window with the front panel and LCD drawn on screen, and in a browser. The author compares output with recordings of real hardware over S/PDIF. Program and wave ROMs are not included and must be dumped from your own MU2000, using tools in the repository; the project asks users not to redistribute those images. The project states it is not affiliated with Yamaha.
Install notes
Bring your own firmware. Dump the 4 MB program ROM and 32 MB wave ROM from your own unit with the tools in doc/dump, then point the plug-in at the folder. Dumping with the repository's own dumper writes into the unit's firmware area, which the author says Yamaha's updater can restore; a MIDI-only route that leaves the firmware untouched is also described. The release is a rolling unsigned snapshot.
Version history
| Version | Date | Notes |
|---|---|---|
| continuous | undated | Rolling pre-release rebuilt from main; no versioned releases. |
