XHT Card
Firmware for Workshop System Computer (Music Thing Modular)
A playable deep-note-inspired stereo chord swarm with manual scrubbing, one-shot movement, delay, reverb, CV, pulse, and optional MIDI control.
by Adrian Vos
- Distribution
- Prebuilt image you flash yourself
- Source
- github.com https://github.com/TomWhitwell/Workshop_Computer/tree/main/releases/29_XHT
- Homepage
- computer.musicthing.co.uk https://computer.musicthing.co.uk/programs/29-xht/
- Synced from
- upstream metadata, raw.githubusercontent.com https://raw.githubusercontent.com/TomWhitwell/Workshop_Computer/main/releases/29_XHT/info.yaml. Corrections belong upstream.
- synthesizer
- stereo
- effect
- midi
- midi-host
- cv
- clocked
- workshop-computer
- cards
Description
XHT Card is a synthesised deep-note-style gesture rather than a bundled sample. Main sets the note position and one-shot destination. The momentary down switch resets the note and launches a one-shot from the start toward the current destination. CV2 also participates in destination control. P2 can clock stepped movement through the note. X controls delay and Y controls reverb.
CV1 input transposes pitch. CV Out 1 mirrors note position unless CV1 is patched, in which case CV Out 1 becomes pitch. CV Out 2 always mirrors note position. P1 gates the note when patched and leaves the note sustained when unpatched.

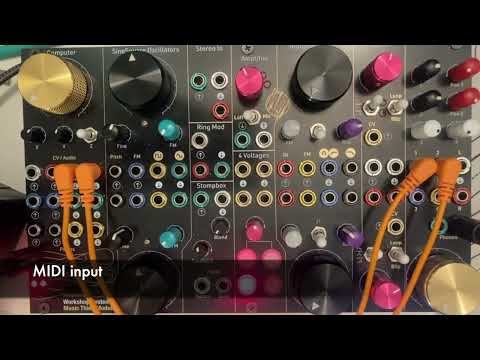

The separate MIDI build adds MIDI note input, CC1/mod-wheel destination control, sustain pedal on CC64, and MIDI note output of the current chord. MIDI clock is ignored.
Version history
| Version | Date | Notes |
|---|---|---|
| 0.1.0 | 2026-07-12 | Version and date from the card's info.yaml. |
