PlaitsXplorer and ElementsXplorer

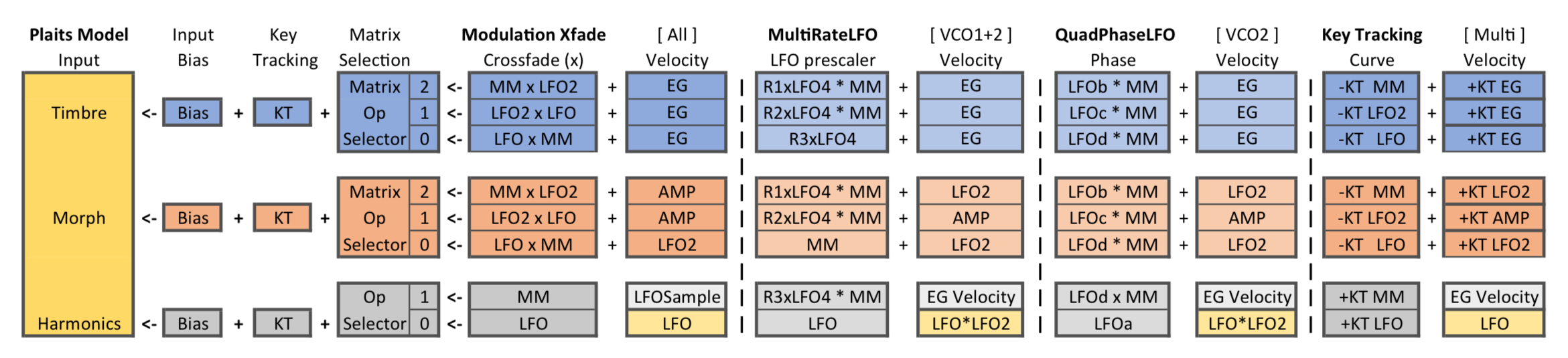

Plaits and Elements based user oscillators for the prologue that map extra modulation sources and knobs onto the front panel, with a modulation matrix, extra LFOs and key tracking.
by John Walton
- Distribution
- Prebuilt image you flash yourself
- License notes
- The repository holds release archives, manuals and images, and no license file; the units build on Mutable Instruments Plaits and Elements code by Emilie Gillet.
- Source
- github.com https://github.com/john-k-walton/Prologue-Oscillators
- Homepage
- github.com https://github.com/john-k-walton/Prologue-Oscillators
- oscillator
- mutable-instruments-port
- plaits
- elements
- modulation
- prologue
Description
PlaitsXplorer offers Plaits models such as virtual analog, hard sync, wavefolders, FM, granular, additive, swarm, particle, noise and drum simulations, and ElementsXplorer is a modal synthesis voice based on Elements. Both reuse the front panel controls and tSoniq's front panel code to give seventeen digital engine controls, with access to the envelope, a second LFO and note velocity, and support for expression pedal, mod wheel, aftertouch and MIDI CC control. The author stresses that they run as ordinary user oscillators and do not modify the instrument's firmware. They are for the prologue only. Audio demos are on the author's SoundCloud.
Install notes
Download the zip from the releases page, read the PDF manual in the repository, and load the units with Korg's prologue Librarian. The README advises stepping each Param 1 to 6 up and down once after selecting a new model, because bipolar values default to minus 100.
Version history
| Version | Date |
|---|---|
| ElementsXplorer Final | 2025-11-10 |
| PlaitsXplorer RC4 | 2025-08-07 |
