maxisynth
Basic drumlogue synth unit built on the Maximilian DSP library, with one oscillator, a low-pass filter and an envelope, meant as a starting point for new units.
by boochow
- Distribution
- Prebuilt image you flash yourself
- Requires stock
- drumlogue 1.0.0 or later (logue SDK 2.0)
- Source
- github.com https://github.com/boochow/maxisynth
- Homepage
- github.com https://github.com/boochow/maxisynth
- synth
- template
- drumlogue
- open-source
Description

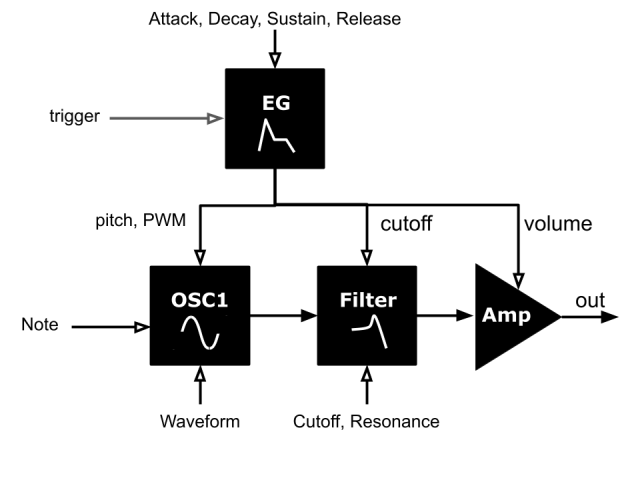

maxisynth is a drumlogue synth unit by boochow that shows how to use the Maximilian audio library with logue SDK 2.0. The main branch is a complete synth with one oscillator, one low-pass filter, one envelope generator and 12 parameters. Two further branches hold a minimal band-limited sawtooth unit and a modified dummy-synth template for Maximilian-based projects. It needs a patched fork of Maximilian, which the author provides. The Korg unit index lists it as a free sample unit for the drumlogue. Other projects, such as maxisynthsvf and maxisnare, are forks of it.
Install notes
Download maxisynth.drmlgunit from the release, put the drumlogue into USB mass-storage mode and copy it into Units/Synths. To build it yourself, place the repository and the patched Maximilian fork under platform/drumlogue and use the logue SDK docker tooling.
Version history
| Version | Date |
|---|---|
| v1.0.0 | 2023-05-14 |
