Chopshop
Firmware for Analog Rytm MKI / MKII (Elektron)

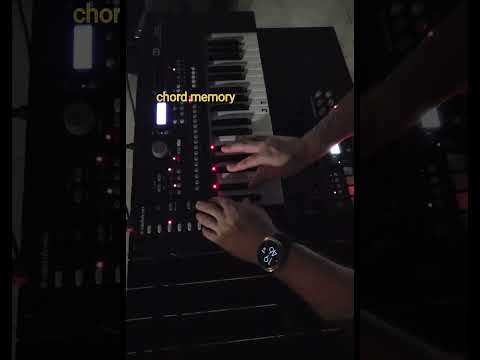

Browser firmware builder for Analog Rytm MK1/MKII OS 1.73 and Analog Keys OS 1.56: CHOP with step-lock, Sample Focus, SMP CUT; on Keys, chord memory and JOY RANDOM. Not for OS 1.74 or the Analog Four.
- Distribution
- Browser installer (WebMIDI / WebUSB)
- Requires stock
- 1.73 (Rytm), 1.56 (Keys); not 1.74
- License notes
- Incorporates gdeo607's rytm1_mods, which has no licence, credited and used as is; the GPL grant does not cover it.
- Source
- github.com https://github.com/bandersong/chopshop
- Homepage
- chopshop-synth.pages.dev https://chopshop-synth.pages.dev/
- sampler
- sequencer
- editor
- chords
Description
Drop your own OS file onto the page, which identifies it by sha256, builds the chosen mods in a WebAssembly worker using elektron-firmware-tool, and only offers the result if it verifies. Hardware reports are the author's own: MK1 builds have run, Keys builds have run, and no MKII build has ever been run on an MKII. Rytm MK1 and MKII are listed here; the Analog Keys features are described under the analog-keys entry. The repo says the mods never change the recovery code.
Install notes
Flash a Control build first, then add one mod at a time. Elektron now serves only OS 1.74 for Rytm; a unit on 1.74 cannot take these files and going back is unverified. Recovery uses the startup menu over DIN MIDI.
Version history
No versions recorded.
